    Three Segment Shell Anchor
    Place of Origin: Zhejiang,China (Mainland)

    inquire
    basketAdd to Basket

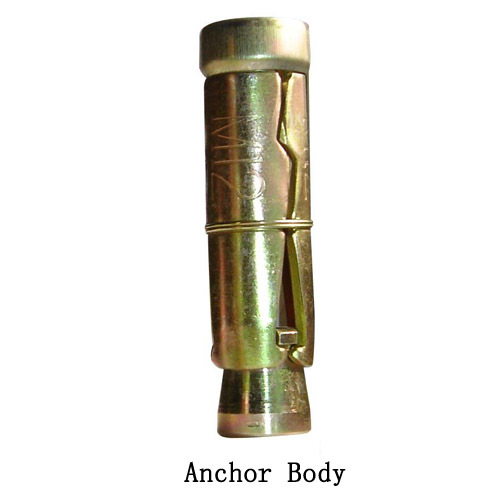

    EnlargeThree Segment Shell Anchor
    1 2 3 4
    arrow Three Segment Shell Anchor Description
    Payment & Shipping Terms
    Payment Term: T/T,L/C
    Means of Transport: by air,by sea,by train
    * It is made of steel pressed used to concrete is appreciated.
    * The retaining power can be removed easily.
    * When fastening the nut or screw the conical part is pulled into the anchor shells expanding it.

    Item CodeAnchor Body Size (mm/Inch)Anchor Length (mm)Drill Dia. (mm)Drill Depth (mm)
    3PA06M6 (1/4)451250
    3PA08M8 (5/16)501455
    3PA10M10 (3/8)601765
    3PA12M12 (1/2)752080
    3PA16M16 (5/8)11525120
    3PA20M20 (3/4)13332140

    The Anchor Body can be fixed Hex Bolt,Hook Bolt,Eye Bolt.
    The size of the parts can be done as customers'needings.


        Three Segment Shell Anchor has been presented above, want more similar products, please click Three Segment Shell Anchors,Faithfull Shield Anchor,Three Segment Anchors.
        Our Three Segment Shell Anchor is good in quality and competitive in price. We manufacture Three Segment Shell Anchor and supply OEM, ODM service according to your requirement.
        If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
