Hex Nut Sleeve Anchor Admin Edit

0.02 USD
Model: Hex Nut type
Min. Order: 10000 Piece/Pieces
Trade Term: FOB,CFR,CIF,EXW
Payment Terms: L/C, T/T
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 2 containers each... Packing: Packed in box to...
Delivery Date: as discussed Type: Sleeve Anchor
Material: Carbon Steel & Stainless Steel Brand Name: OEM
Diameter: φ6.5 mm ~ φ20 mm Length: 18 mm ~ 220 mm
Capacity: MPA Tensile loading Surface treatment: ZP / ZYP / SS natural color
Function: Realize and generate expansion force Base materials: In the concrete,masonry,brickwork,solid wall or stone substrate
Application: Used to anchor and fix the objects Installation: Pre-drill a hole in substrate and fasten hex nut by tool
Working mechanism: Use a conical stud to expand the sleeve body when fastening hex nut by tool Characteristic: Quick,easy and secure installing operation
Producing engineering: Cold heading & Puncher Design feature: Pre-assembled with a hex nut, flat washer and a conical stud used to expand sleeve body

     Hex nut sleeve anchor is a light to medium duty concrete expansion anchor, pre-assembling a hex nut, flat washer, conical threaded stud and expansion steel sleeve,used anchor and fix the fixture objects in the base material through expansion working mechanism. Threaded stud is designed an outward flared tapered end, tightening hex nut will pull the tapered end into sleeve body and wedge outwards to lock sleeve anchor body in the hole wall in substrate.

     Hex head sleeve anchors are used to secure the object and equipment to the concrete or masonry surfaces.  The hole size for installing hex sleeve anchor should match the diameter and be 12 mm-24 mm deeper than the expected depth of sleeve type anchor bolts. Before inserting bolt and sleeve, position the nut to be flush with the top of hex sleeve to prevent damaging thread when being hammered into pre-drilled hole. During installing, Once metal sleeve anchor is inserted into the hole, do not over tighten the nut to avoid affecting the fixing of sleeve fastener.

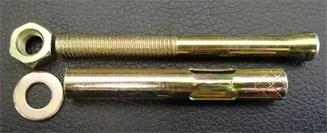

[Parts of product pre-assembled]:   Din 934 Hex Nut + Din 125 Flat Washer + Sleeve + Conical Stud.

[Materials & Surface treatment]:

 Carbon steel & ZP / ZYP

 Stainless steel 304-316 & SS natural color

[Base Materials]:   Concrete  Masonry  Brickwork  Solid wall  Stone

[Product Features]:

 Suit for light and medium duty load application.

 Fastening hex nut by tool make conical stud move upwards and expand the sleeve.

 Punched three oval holes in the sleeve body.

 Don't need precise drilling depth.

 Quick and easy to use and install.

● Allow to use in thin section edge of concrete or masonry substrate.

 Economical & efficient & wide installing.

[Product Applications]:

Railing,special door industry,wall panel.

Installation of interval signs, handrails, railings, shelves ,wood plate,wall hanger,bracing,shelving and gates.

 Installation of console grating and fence and heavy machinery location installing.

Pipe installation engineering / pipe support.

Cable and tower racks,outlet box,parking meter

Installation of banister starter bars for structural expansion,stadium seats and rectification works.

Steel building structural expansion and rectification works.

Curtain walls, fixing rock climbing hanger plate or other security equipment or device.

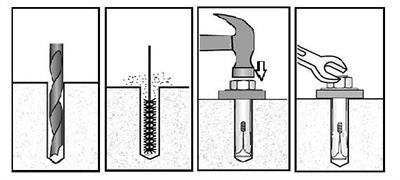

[Installation Instructs]:

 Drill a hole in the base materials with the correct angle, diameter and depth.

 Use a nylon brush to remove all debris and dust.

 Reorganize anchor body to the natural state.

 Drive the anchor body pass through a guide hole in the fixture and insert into the drilled hole until flat washer tightly touch with the fixture surface.

 Fasten hex nut by tool till being expanded and fixed entirely.

[Product size description]: Unit: mm

 Item Code     Anchor Size   Bolt Size  Sleeve Size   Nut/Washer
SLA-6518M5 X ø6.5 X 18M5 X 23φ6.5 X 13M5
Others~~~~~~~~
SLA-6575M5 X ø6.5 X 75M5 X 84φ6.5 X 75M5
SLA-0825M6 X ø8 X 25M6 X 33φ7.9 X 21M6
Others~~~~~~~~
SLA-0885M6 X ø8 X 85M6 X 93φ7.9 X 80M6
SLA-1040M8 X ø10 X 40M8 X 50φ9.8 X 35M8
SLA-1050M8 X ø10 X 50M8 X 58φ9.8 X 43M8
Others~~~~~~~~
SLA-10130M8 X ø10 X 130M8 X 141φ9.8 X 124M8
SLA-1260M10 X ø12 X 60M10 X 70φ11.8 X 51M10
SLA-1275M10 X ø12 X 75M10 X 84φ11.8 X 66M10
Others~~~~~~~~
SLA-12129M10 X ø12 X 129M10 X 138φ11.8 X 120M10
SLA-1665M12 X ø16 X 65M12 X 78φ15.8 X 55M12
SLA-1685M12 X ø16 X 85M12 X 98φ15.8 X 75M12
Others~~~~~~~~
SLA-16220M12 X ø16 X 220M12 X 237φ15.8 X 210M12
SLA-2075M16 X ø20 X 75M16 X 91φ19.7 X 64M16
Others~~~~~~~~
SLA-20151M16 X ø20 X 151M16 X 168φ19.7 X 141M16

~The other usual sizes and special sizes are available.
