Chemical Anchor Bolt Admin Edit

0.07 USD
Model: Internal Hex Head
Min. Order: 10000 Piece/Pieces
Payment Terms: L/C, T/T
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 1 container each month Packing: Packed in box to...
Delivery Date: as discussed Type: Anchor Bolt
Material: Carbon Steel & Stainless Steel Brand Name: OEM
Diameter: 8 mm-5/16"~~30 mm-1-/4" Length: 110 mm-4-1/2"~~ 380 mm-14-1/8"
Capacity: MPA Tensile loading Function: No expansion fixing
Working principle: Use chemical adhesive system to cure anchor rod and structure substrate to achieve the fixing The head design: Internal hex head, External hex head and Flat head
The end design: Cut single/double 45 degree or flat end Foundation: In the concrete,masonry,solid brick wall or stone substrate
Application: Used to fix the objects or connect and reinforce construction structure foundation Installation: Pre-drill a hole in substrate and insert anchor bolt into chemical glass capsule for curing in the hole wall
Surface treatment: ZP / ZYP / Hot dipped galvanized / Dacromet spraying Producing engineering: Punching machine-Cutting Lathe-Thread rolling machine

   Chemical anchor bolt is an expansion free fixings and belongs to chemical fixings for concrete,comprising of a threaded stud designed internal head, external hex head or flat head type and pre-assembled a nut and washer. chemical bolt fixing is achieved by inserting a chemical adhesive into a drilled hole,mainly using chemical glass capsule or injection resin as chemical anchor system.

   Chemical bolt fixings are mainly designed to fix the objects and connect or reinforce concrete construction structure cooperating with rebar and threaded rod, without expansion performance.The end is cut by single or double 45 degree angle or flat shape. The whole body is full of external threads. It is mainly made of carbon steel 4.8-8.8 grade and stainless steel 304-316 with the same shape and size.

{Product features}:

Design external hex head, internal hex head and flat head types to use special setting tool for installing.

 Made of carbon steel materials having 4.8-8.8 grade to realize various use purpose.

 Expansion free function.

 Allow to use in the small space or edge of construction structure foundation.

 The sharp tail end make it insert chemical glass capsule and installing hole easier and quicker.

 Use chemical adhesive system for bonding between anchor stud and base materials in the hole to realize the fixing function, also called chemical adhesive anchors.

Mainly adopt chemical glass capsule or injection resin to achieve chemical bonding.

 Allow usage in damp installing hole.

Also used in reinforcement concrete construction structure for connecting or reinforcing.

 High loading performance and suitable for static and dynamic loading place.

{Chemical Glass Capsule Materials}: Glass + Resin + Quartz + Hardener

{Materials & Surface treatment}:

 Carbon steel & ZP / ZYP /  HDG / Dacromet Spraying.

 Stainless steel 304 / 316.

{Base Materials}:  ☑ Concrete ☑ Masonry ☑ Brickwork ☑ Solid brick wall ☑ Stone


 Reconstruction and reinforcement of old and dangerous buildings works.

 Decorative panel fixing or architectural finishes.

 Tie back for temporary structures or permanent fixing.

 Chemical fixing for steel structure,curtain walling,cladding,precast concrete components.

 Installing sign, handrails,balustrades and gates.

 Goods shelves,telecom tower, Racking installation.

 Installation of starter rods for structural extension and rectification works.

 Cranes,lifts and escalators installation.

 Reinforcement concrete construction structure for connecting or reinforcing engineering.

 High rise construction steel structure installing project.

 Power plants,tunnel construction engineering.

 Roads,bridges,railroad construction works.

{Hardening-setting time}:

For dry hole:  InstallingFor damp hole:  Installing
Substrate temp.℃Curing TimeSubstrate temp.℃Curing Time
≥ 2015 Min.≥ 2030 Min.
10 ~ 2025 Min.10 ~ 2050 Min.
0 ~ 101.5 Hrs.0 ~ 102.5 Hrs.
-5 ~ 05.5 Hrs.

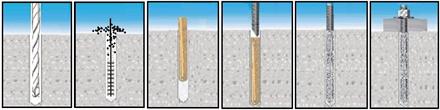

{Installation Instruction}:

❶ Drill hole in base material to ensure the proper hole diameter and depth.

❷ Use brush to remove the dirt and dust in the hole.

❸ Check the viscosity of the resin inside of glass capsule and insert a chemical glass capsule into a clean hole.

❹ Unscrew hex nut and washer to rotate threaded stud bolt with setting tool and power tool to drive it into glass capsule till reaching the bottom of the hole.

❺ Observe the specified curing time until being solidified completely.

❻ Tighten hex nut and washer for fixing or reinforcing.

{Product size description}: (mm/inch)

  Item Code
    Stud  SizeMax.Thickness FastenedHole Dia. Hole  Depth
CHEMA-08M8 X 110
16 mm10 mm80 mm
M10 X 13022 mm12 mm90 mm
CHEMA-12M12 X 16030 mm14 mm110 mm
CHEMA-16M16 X 19038 mm18 mm125 mm
CHEMA-20M20 X 26070 mm25 mm170 mm
CHEMA-24M24 X 30065 mm28 mm210 mm
CHEMA-30M30 X 38070 mm35 mm280 mm
CHEMAI-5165/16 X 4-1/23/43/83-3/8
CHEMAI-383/8 X 517/163-5/8
CHEMAI-121/2 X 6-1/41-1/49/163-9/16
CHEMAI-585/8 X 7-1/21-3/43/46
CHEMAI-343/4 X 10-1/42-3/47/87-1/2
CHEMAI-787/8 X 11-3/43-3/418-1/2
CHEMAI-11 X 11-3/42-1/21-1/88-1/2
CHEMAI-1141-1/4 X 14-1/821-7/1611-1/2

**The special sizes and styles are available according to the samples or the drawings supplied by customers.
