Stainless Steel Chemical Anchors Admin Edit

2.1 USD
Model: SS 304(A2) & 316(A4)
Min. Order: 10000 Piece/Pieces
Trade Term: FOB,CFR,CIF,EXW
Payment Terms: L/C, T/T
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 1 container each month Packing: Packed in box to...
Delivery Date: as discussed Type: Wall Anchor
Material: 304-316 Stainless Steel Brand Name: OEM
Diameter: 8 mm-5/16"~~30 mm-1-/4" Length: 110 mm-4-1/2"~~ 380 mm-14-1/8"
Capacity: Mpa Tensile loading Function: Expansion free fixing
Working mechanism: Use chemical adhesive system to cure the stud and structure substrate Base materials: In the concrete,masonry,stone or solid wall substrate
The end types: Cut single / double 45 degree or flat end The head types: Internal hex head,External hex head and Flat head
Application: Used to fix the objects or connect and reinforce structure foundation Installation: Pre-drill a hole in substrate and insert chemical adhesive system to cure and to install by setting tool
Producing engineering: Punching machine-Cutting Lathe-Thread rolling machine Surface treatment: Stainless Steel Original Color

    Stainless steel chemical anchor bolt is a kind of chemical anchor bolt system,made of stainless steel 304 or 316, as chemcial anchor fixings no expansion,used to install and fix the objects in concrete, masonry, solid brick wall bases.The sizes of ss chemical anchor stud is same as steel chemical anchor stud. Cause the mechanical and chemical properties of stainless steel materials are better than that carbon steel, ss chemical anchor has higher load and stronger tensile strength including better anti-corrosion and anti-rust function.

    Stainless steel chemical anchors are same design as steel chemical anchors,designing a flat head, external hex head or internal hex head types,pre-assembling a stainless steel nut and a washer. For installing, the appropriate chemically cured resin or glass capsule is injected or inserted into the pre-drilled hole beforehand, the chemical anchor stud is inserted into the hole and rotated by power tool till observing curing time.

    SS chemical anchors is designed for the places with high requirements on installing sites.Ordinary zinc plated steel chemical anchor bolt is used in dry environment;hot dipped galvanized chemical anchor is used in humid indoor and outdoor environment; 304 stainless steel chemical anchor is used in humid environment where water may be soaked. 316 stainless steel chemical anchor bolt is used in contaminated places containing salt water or chlorine gas, and can also be used in places with high installation and decoration requirements.

[Product features]:

Stainless steel chemical anchor has higher load and stronger tensile strength including better anti-corrosion and anti-rust function than carbon steel material.

Design external hex head, internal hex head and flat head types to use special setting tool for installing.

 The sharp tail design make it insert chemical glass capsule and installing hole easier and quicker.

 No expansion function.

Allow to use in the small space or edge of construction structure foundation.

Use chemical adhesive system for bonding between anchor stud and base materials in the hole to realize the fixing function, also called chemical adhesive anchors.

Mainly adopted chemical glass capsule or injection resin to achieve chemical bonding.

High loading performance and suitable for static and dynamic loading place.

Allow usage in wet,underwater installing hole and polluted environmental sites.

 Also used in reinforcement concrete construction structure for connecting or reinforcing.

[Chemical Glass Capsule Components]: Glass + Hardener + Quartz + Resin

[Materials & Surface treatment]:

SS 304-316 & Original color.

[Base Materials]:  ☑ Concrete  Masonry  Brickwork  Solid brick wall  Stone

[Applications]:

✿ Chemical fixing for steel structure,curtain walling,cladding,precast concrete components.

✿ Tie back for temporary structures or permanent fixing.

✿ Telecom tower, Racking.

✿ Installing sign, handrails,balustrades and gates.

✿ Installation of starter rods for structural extension and rectification works.

✿ Goods shelves installing .

✿ Reconstruction and reinforcement of old and dangerous buildings works.

✿ Reinforcement concrete construction structure for connecting or reinforcing engineering.

✿ Decorative panel fixing or architectural finishes.

✿ High rise construction steel structure installing project.

✿ Power plants,tunnel construction engineering.

✿ Roads,bridges,railroad construction works.

✿ Cranes,lifts and escalators installation.

[Hardening-setting time]:

Dry hole:  InstallingWet hole:  InstallingUnderwater hole:
Installing
Substrate temp.Curing TimeSubstrate temp.Curing TimeSubstrate temp.Curing Time
≥ 20℃15 Min.≥ 20℃30 Min.≥ 20℃1.5 Hrs.
10 ~ 20℃25 Min.10 ~ 20℃50 Min.10 ~ 20℃2.5 Hrs.
0 ~ 10℃1.5 Hrs.0 ~ 10℃2.5 Hrs.0 ~ 10℃5.5 Hrs.
-5 ~ 0℃5.5 Hrs.

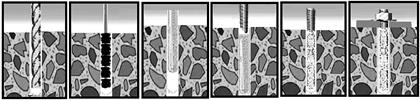

[Installation Procedures]:

❶ Drill hole in base material to ensure the proper hole diameter and depth.

❷ Use brush to remove the dirt and dust in the hole.

❸ Check the viscosity of the resin inside of glass capsule and insert a chemical glass capsule into a clean hole.

❹ Unscrew hex nut & washer to rotate threaded stud with setting tool and power tool to drive it into glass capsule till reaching the bottom of the hole.

❺ Observe the specified curing time until being solidified completely.

❻ Tighten hex nut and washer for fixing or reinforcing.

[Product size description]: (mm/inch)

  Item Code
   Stud  SizeMax.Thickness FastenedHole Dia. Hole  Depth
CHEMA-08M8 X 110
16 mm10 mm80 mm
CHEMA-10
M10 X 13022 mm12 mm90 mm
CHEMA-12M12 X 16030 mm14 mm110 mm
CHEMA-16M16 X 19038 mm18 mm125 mm
CHEMA-20M20 X 26070 mm25 mm170 mm
CHEMA-24M24 X 30065 mm28 mm210 mm
CHEMA-30M30 X 38070 mm35 mm280 mm
CHEMAI-5165/16 X 4-1/23/43/83-3/8
CHEMAI-383/8 X 517/163-5/8
CHEMAI-121/2 X 6-1/41-1/49/163-9/16
CHEMAI-585/8 X 7-1/21-3/43/46
CHEMAI-343/4 X 10-1/42-3/47/87-1/2
CHEMAI-787/8 X 11-3/43-3/418-1/2
CHEMAI-11 X 11-3/42-1/21-1/88-1/2
CHEMAI-1141-1/4 X 14-1/821-7/1611-1/2

**The special styles and sizes could be customized.
