Eye Bolt Shield Anchor

Model: ZYP Folded Eye Bolt
Place of Origin: Zhejiang,China (Mainland)
Type: Anchor Bolt
Material: Steel
Brand Name: OEM
Diameter: Shield anchor body 12 mm ~ 32 mm
Length: Folded eye bolt thread length 50 mm ~ 140 mm & special length
Capacity: MPA
Material: Carbon Steel
Surface treatment: Zinc plating & Yellow passivated
Function: Realize and generate expansion force
Design feature: Pre-assemble shield anchor only with folded eye bolt
Usage: Used to anchor & fix, hang, connect or pass the objects through eye bolt
Working principle: Use a conical nut to expand shield anchor body when tightening the eye bolt
Base materials: In the concrete,masonry,stone,brickwork substrate
Installation: Pre-drill a hole in the substrate and to tighten by tool
Producing engineering: Punching machine
Characteristic: Quick and easy installation operation

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:0.08 USDProduction Capacity:1 container each month
Trade Term:FOB,CFR,CIF,EXWPacking:Packed in box to...
Payment Terms:L/C, T/TDelivery Date:as discussed
Min. Order:10000 Piece/Pieces
Means of Transport:Ocean, Air, Land

    Eye bolt shield anchor is suitable for medium-heavy installation purpose.  As one kind of heavy duty concrete anchor or expanding shield anchor, Three segment steel shields are made of carbon steel plate and produced by high speed automatic punching machine to ensure its high quality product performance. Steel shield anchor eyebolts are widely used to anchor & fix, hang,connect or pass the objects through the eye  in various structure base materials.

   Eye shield anchor is assembled folded eyebolt with shield anchor only. The steel eye bolt is folded and made by punching machine, which is different manufacturing process with forged steel eyebolt. When tightening eye head or the hex nut assembled and making a cone nut pull into and expand the expanding eyebolt shield anchor to generate balanced expansion force in three directions in the hole wall drilled in the base materials to ensure security of installation and usage.

    The steel three segment shields possess strong loading and tensile strength in the pre-drilled hole in the substrate, being also suitable for enlarged hole caused by drilling in weak base materials. By pulling down the cone nut, a strong spring ensure steel shield anchors return to normal assembled state when the improper expansion happened during the installation. By loosing the tightened fasteners, concrete shield anchor bolts are easily removed after being installed.

Features:

 Pre-assembled with folded eye bolt & Din 934 hex nut & Din 125/9021 flat washer.

 If being loose or fall scattered, could reassemble or replace a spring to be restored.

 Generate three directions balanced expansion force provide optimal loading and ensure security of installing.

 Used to anchor & fix, hang, connect or pass the objects through the eye

 Being suitable for medium-heavy duty loading purpose and weak base materials.

Materials & Surface treatment:

 ☞ Carton steel & Zinc plating and Zinc plated and yellow passivated.

Base Materials:  ☑ Concrete  Masonry ☑ Brickwork ☑ Solid wall ☑ Stone

Applications:

 Special door industry,Wall panel.

 Installation of signs, handrails, railings, shelves and gates.

 Installation of grating and fence and heavy machinery installing.

 Pipe installation engineering / pipe support.

 Cables and tower racks, cable wire installation industry.

● Installation of starter bars for structural expansion and rectification works.

● Structural expansion and rectification works.

 Curtain walls, cladding and precast concrete components.

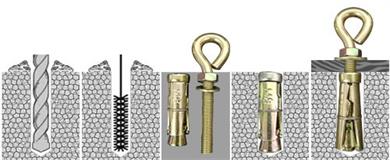

Installation Guide:

1. Drill a hole in the substrate to ensure the correct diameter and embedment depth.

2. Use a nylon brush or high pressure air pump to clean all debris and dust inside the hole.

3. Loosen and remove eye bolt, hex nut and flat washer.

4. Insert shield anchor only into the drilled hole until being flush with the surface.

5. Pass eye bolt through a guide hole in the fixture and vertically aligned with and close to a substrate hole.

6. To fasten eye bolt by tool until be fixed fully.

Product size description: (mm/inch)

Item CodeAnchor SizeAnchor LengthDrill Dia.Normal Hook Bolt Size
3PAE06M6 (1/4)4512M6 X 50
3PAE08M8 (5/16)5014M8 X 55
3PAE10M10 (3/8)6016M10 X 70
3PAE12M12 (1/2)7520M12 X 85
3PAE16M16 (5/8)11525M16 X 125
3PAE20M20 (3/4)13032M20 X 140

** The special eye bolt sizes are available.

** The folded, welded and forged eye bolt are available.

** Being available to assemble loose bolt, stud, projecting bolt, eye bolt and hook bolt.
