Forged eyebolt shield anchor is completed with a forged eyebolt with expansion shield anchor only. The forged eyebolt is made by hot forging process being different with the folded eye bolt.
By forging, It causes the eye head forms a fully closed ring and make the forged eye have stronger loading advantage than folded eyebolt and prevent being opened out when loading to increase security. When installing, just to turn forged eye head clockwise or tighten the hex nut and make a conical nut pull into and expand concrete shield anchor bolt body to generate balanced expansion force in three directions in the hole wall drilled in the base materials to ensure security of installation and usage.
The heavy duty steel three segment shields possess strong loading and tensile strength in the pre-drilled hole in the substrate, being also suitable for enlarged hole caused by drilling in weak base materials. By pulling down the conical nut, a strong spring ensure shield anchor bolt return to normal assembled state when the improper expansion happened during the installation. By loosing the tightened fasteners, shield anchors are easily removed after being installed.
Shield anchor eyebolt forged is sutiable for medium-heavy installation purpose. As one kind of expanding eyebolt anchors, The three segment shields are made of carbon steel plate and produced by high speed automatic punching machine to ensure its high quality product performance. Eyebold forged eye shield anchor is widely used to anchor & fix, hang, connect or pass the objects through the eye in various structure substrate.
▲ Pre-assembled with a forged eye bolt & Din 934 hex nut & Din 125/9021 flat washer.
▲ Made by forging process to form a fully closed ring with stronger loading advantage than the folded eye bolt.
▲ To tighten eyebolt, by turning eye head clockwise or fastening the hex nut assembled.
▲ If being loose or fall scattered, could reassemble or replace a spring to be restored.
▲ Generate three directions balanced expansion force provide optimal loading and ensure security of installing.
▲ Used to anchor & fix, hang, connect or pass the objects through the eye head.
▲ Being suitable for medium-heavy duty loading purpose.
Materials & Surface treatment:
☞ Carton steel & Zinc plating and Zinc plated and yellow passivated.
Base Materials: ☑ Concrete ☑ Masonry ☑ Brickwork ☑ Solid wall ☑ Stone
✔Cables and tower racks, cable wire installation industry.
✔Special door industry,Wall panel.
✔Installation of signs, handrails, railings, shelves and gates.
✔Pipe installation engineering / pipe support.
✔Curtain walls, cladding and precast concrete components.
✔Structural expansion and rectification works.
✔Installation of grating and fence and heavy machinery installing.
✔Installation of starter bars for structural expansion and rectification works.

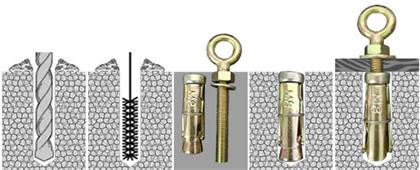

1. Drill a hole in the substrate to ensure the correct diameter and embedment depth.
2. Use a nylon brush or high pressure air pump to clean all debris and dust inside the hole.
3. Loosen and remove forged eyebolt, hex nut and flat washer.
4. Insert shield anchor only into the drilled hole until being flush with the surface.
5. Pass eyebolt through a guide hole in the fixture and vertically aligned with and close to a substrate hole.
6. To fasten forged eyebolt by tool until be fixed fully.
Product size description: (mm/inch)
|Item Code||Anchor Size||Anchor Length||Drill Dia.||Normal Hook Bolt Size|
|3PAFE06||M6 (1/4)||45||12||M6 X 50|
|3PAFE08||M8 (5/16)||50||14||M8 X 55|
|3PAFE10||M10 (3/8)||60||16||M10 X 70|
|3PAFE12||M12 (1/2)||75||20||M12 X 85|
|3PAFE16||M16 (5/8)||115||25||M16 X 125|
|3PAFE20||M20 (3/4)||130||32||M20 X 140|
** The special forged eyebolt sizes are available.
** The folded and welded eyebolt are available.
** Being available to assemble loose bolt, stud, projecting bolt, eye bolt and hook bolt.
