Shield Anchor Eye Bolt Forged Admin Edit

1.15 USD
Model: Forged Eye Bolt ZP
Min. Order: 10000 Piece/Pieces
Trade Term: FOB,CFR,CIF,EXW
Payment Terms: L/C, T/T
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 1 container each month Packing: Packed in box to...
Delivery Date: as discussed Type: Expansion Anchor
Material: Carbon Steel Brand Name: OEM
Diameter: Shield anchor body 12 mm ~ 32 mm Length: Forged eye bolt thread length 50 mm ~ 140 mm & special length
Capacity: MPA Surface treatment: Zinc plating & Yellow passivated
Function: Realize and generate expansion force Design feature: Pre-assemble shield anchor only with forged eye bolt
Usage: Used to anchor & fix, hang, connect or pass the objects through eye bolt Working principle: Use a conical nut to expand shield anchor body when tightening the eye bolt
Base materials: In the concrete,masonry,stone,brickwork substrate Installation: Pre-drill a hole in the substrate and to tighten by tool
Producing engineering: Punching machine Characteristic: Quick and easy installation operation

    Shield anchor eye bolt forged eye is completed with a forged eyebolt with expanding shield anchor only. The forged steel eyebolt is made by hot forging process being different with the folded eye bolt. The forged eye has stronger loading advantage and prevent being opened out when loading to increase security. When installing, just to turn forged eye head clockwise or tighten the hex nut and make a conical nut pull into and expand concrete shield anchor body to generate balanced expansion force in three directions in the hole wall drilled in the base materials to ensure security of installation and usage.

    The heavy duty steel three segment shields possess strong loading and tensile strength in the pre-drilled hole in the substrate, being also suitable for enlarged hole caused by drilling in weak base materials. By pulling down the conical nut, a strong spring ensure shield anchor bolt return to normal assembled state when the improper expansion happened during the installation. By loosing the tightened fasteners, shield anchor only are easily removed after being installed.

    Shield anchor eyebolt forged is sutiable for medium-heavy installation purpose. As one kind of concrete eye bolt anchors, The three segment shields are made of carbon steel plate and produced by high speed automatic punching machine to ensure its high quality product performance. Shield anchor with forged eye is widely used to anchor & fix, hang, connect or pass the objects through the eye in various structure substrate.

Product Features:

 Pre-assembled with a forged eye bolt & Din 934 hex nut & Din 125/9021 flat washer.

 Made by forging process and have stronger loading advantage than the folded eye bolt.

To tighten eyebolt, by turning eye head clockwise or fastening the hex nut assembled.

 If being loose or fall scattered, could reassemble or replace a spring to be restored.

 Generate three directions balanced expansion force provide optimal loading and ensure security of installing.

 Used to anchor & fix, hang, connect or pass the objects through the eye head.

 Being suitable for medium-heavy duty loading purpose.

Materials & Surface treatment:

  Carton steel & Zinc plating and Zinc plated and yellow passivated.

Base Materials:   Concrete  Masonry ☑ Brickwork  Solid wall  Stone

Applications:

Special door industry,Wall panel.

Installation of signs, handrails, railings, shelves and gates.

Installation of grating and fence and heavy machinery installing.

Pipe installation engineering / pipe support.

Cables and tower racks, cable wire installation industry.

Installation of starter bars for structural expansion and rectification works.

Structural expansion and rectification works.

Curtain walls, cladding and precast concrete components.

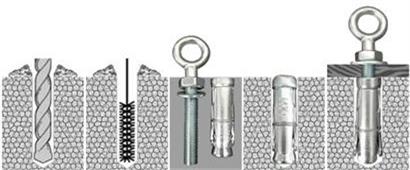

Installation Instruction:


1). Drill a hole in the base materials at right angle, diameter and depth.

2). Clean the hole inside using a brush or air pump before installing.

3). Reorganize anchor body to the natural state and hammer the head to insert it into the drilled hole until the flat washer tightly touch with the substrate surface.

4). Turn the forged eye clockwise by proper tool and make body expand and fix fully for direct use purpose.

+Or, drive anchor body to pass through a guide hole in the fixture and insert into the drilled hole until the flat washer tightly touch with the fixture surface.

5). Fasten hex nut by tool until be fixed fully.

Product size description: (mm/inch)

Item CodeAnchor SizeAnchor LengthDrill Dia.Normal Eye Bolt Size
3PAFE06M6 (1/4)4512M6 X 50
3PAFE08M8 (5/16)5014M8 X 55
3PAFE10M10 (3/8)6016M10 X 70
3PAFE12M12 (1/2)7520M12 X 85
3PAFE16M16 (5/8)11525M16 X 125
3PAFE20M20 (3/4)13032M20 X 140

** The special forged eyebolt sizes are available.

** The folded and welded eyebolt are available.

** Being available to assemble loose bolt, stud, projecting bolt, eye bolt and hook bolt.
